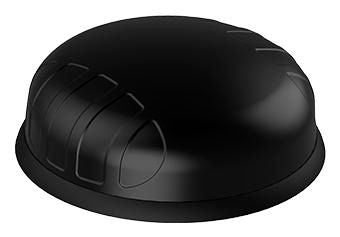

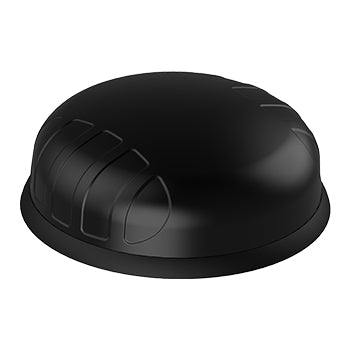

2-in-1 Transportation & IoT/M2M Antenna 2400 - 2500 MHz, 5000 - 7200 MHz, 7.5dBi; 2X2 Wi-Fi (MIMO)
£68.75
Key Features
- 2-in-1 high performance omni-directional antenna
- Dual-band Wi-Fi, 2.4 GHz, 5 GHz and 6GHz frequency bands
- 2X2 MIMO for improved performance
- Antenna supports Wi-Fi-6e/Wi-Fi-7/Bluetooth
- Robust, vandal resistant and waterproof enclosure (IP 69K)
- Ultra-versatile mounting options for easy installation
Description
Poynting’s PUCK range introduces a compact yet powerful antenna solution for various applications, including IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming. The PUCK-12 is a 2-in-1 antenna system housed in a small, durable enclosure, making it ideal for high-performance Wi-Fi connectivity in space-constrained environments. Dual-Band 2x2 MIMO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards. Compact & Versatile Design: Small-profile form factor ensures easy integration across various industries. Optimised Radiation Patterns: Offers an excellent balance of omnidirectionality, pattern diversity, and signal efficiency for improved connection stability. Superior High-Frequency Performance: Delivers exceptional throughput and reliability, especially at higher frequency bands. Ideal for Harsh Environments: Designed for robust Wi-Fi performance in industrial, transportation, and remote monitoring applications. The PUCK-12 is a reliable, high-efficiency Wi-Fi antenna, offering stable and high-speed wireless connectivity for demanding applications in compact installations.Specifications
| Performance | |
|---|---|
| Frequency band | 2.4 - 6 GHz |
| Wi-Fi standards | Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Features | |
| Protection features | Weatherproof |
| International Protection (IP) code | IP69K |
| Antenna type | Omni-directional antenna |
| Product colour | White |
| Frequency band | 2.4 - 6 GHz |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Technical details | |
| Frequency band | 2.4 - 6 GHz |
| Antenna type | Omni-directional antenna |
| Colour | |
| Product colour | White |
