10 - 32V In, 12V Out, 3.5A, 10 - 70°C, 1.2m, 18AWG Copper Wire, IP66, Black/Red, 140g
£48.15
Key Features
- Hardwire charger includes male 5.5mm barrel connector; 10-32VDC input range, 12VDC output
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
Description

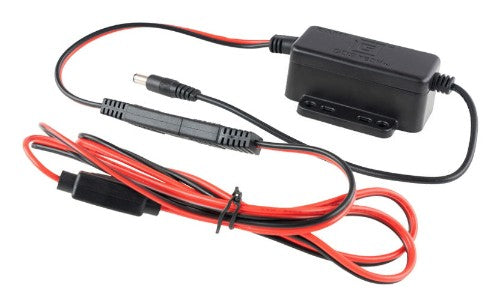

The GDS® Modular Hardwire Charger with 5.5mm Large Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, making it ideal for most any vehicle applications. Always Protected. Always Connected.®Specifications
| Features | |
|---|---|
| International Protection (IP) code | IP66 |
| Input voltage | 10 - 30 V |
| Output voltage | 12 V |
| Output current | 3.5 A |
| Power supply type | Auto |
| Purpose | Docking station |
| Power protection features | Humidity resistant, Over voltage, Reverse polarity, Short circuit |
| Product colour | Black, Red |
| Certification | E-Mark |
| Power | |
| Input voltage | 10 - 30 V |
| Output voltage | 12 V |
| Output current | 3.5 A |
| Performance | |
| International Protection (IP) code | IP66 |
| Power supply type | Auto |
| Purpose | Docking station |
| Power protection features | Humidity resistant, Over voltage, Reverse polarity, Short circuit |
| Certification | E-Mark |
| Design | |
| Cable length | 1.2 m |
| Product colour | Black, Red |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Certificates | |
| Certification | E-Mark |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, RoHS, UKCA |
| Sustainability | |
| Doesn't contain | Cadmium, Lead, Mercury |
| Weight & dimensions | |
| Outer diameter | 5.5 mm |
| Weight | 140 g |
| Cable length | 1.2 m |
| Packaging data | |
| Cables included | DC |
| Package type | Polybag |
| Packaging content | |
| Cables included | DC |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Technical details | |
| Doesn't contain | Cadmium, Lead, Mercury |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, RoHS, UKCA |
