15W, Composite, Black/Green

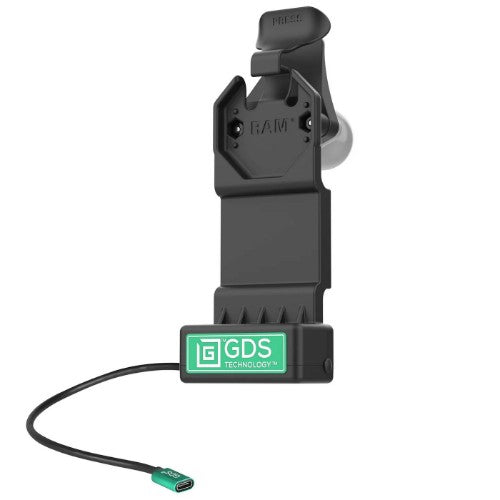

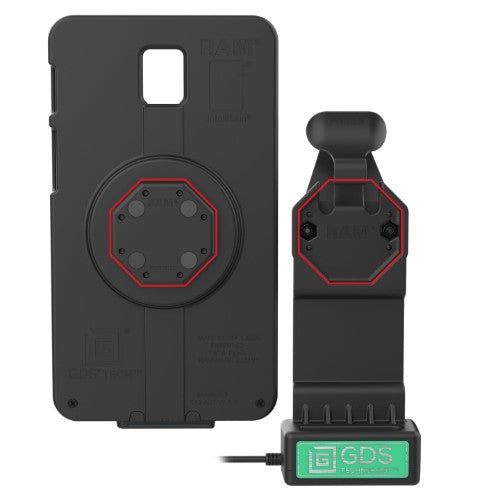

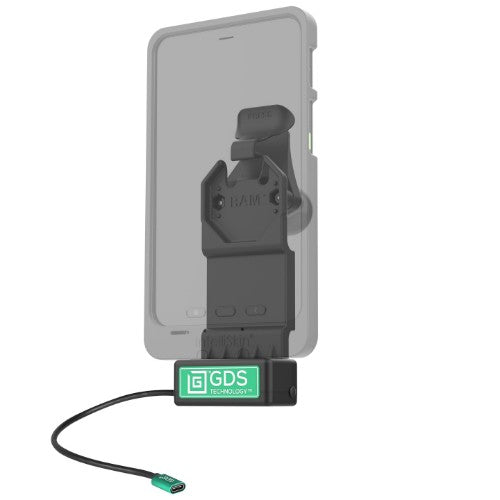

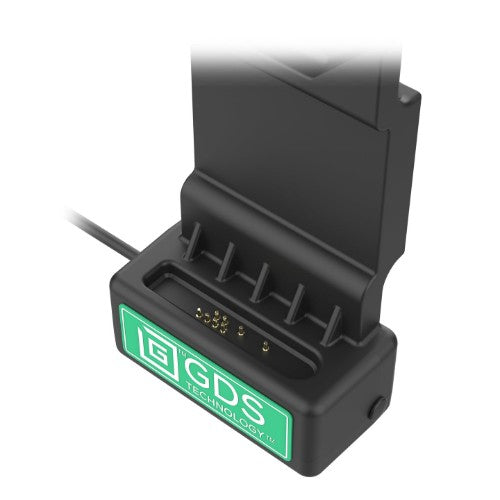

The GDS Uni-Conn Powered Dock (RAM-GDS-DOCK-U1CPU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A 7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All.
£71.55
Description
GDS Uni-Conn Powered DockThe GDS Uni-Conn Powered Dock (RAM-GDS-DOCK-U1CPU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A 7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All.
Specifications
| Performance | |
|---|---|
| Basic device type | Tablet |
| Brand compatibility | Samsung |
| Compatibility | Tab A 7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, Tab A9+. |
| Product colour | Black, Green |
| Material | Composite |
| Ports & interfaces | |
| Docking connector type | USB Type-C |
| Power | |
| Power source type | DC |
| Power consumption (max) | 15 W |
| DC output voltage | +12V, +5V |
| DC output current | 3 A |
| Weight & dimensions | |
| Cable length | 0.215 m |
| Width | 80.2 mm |
| Depth | 76.9 mm |
| Height | 214.3 mm |
| Weight | 240 g |
| Packaging data | |
| Quantity | 1 |
| Design | |
| Product colour | Black, Green |
| Material | Composite |
| Technical details | |
| Quantity | 1 |
| Cable length | 0.215 m |
