60 W, 500 mA, 5V - 20V @ 3A, 0.55 lb
£114.15
Key Features

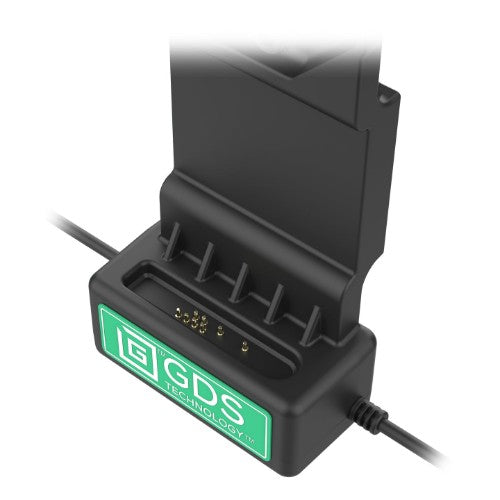

- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed

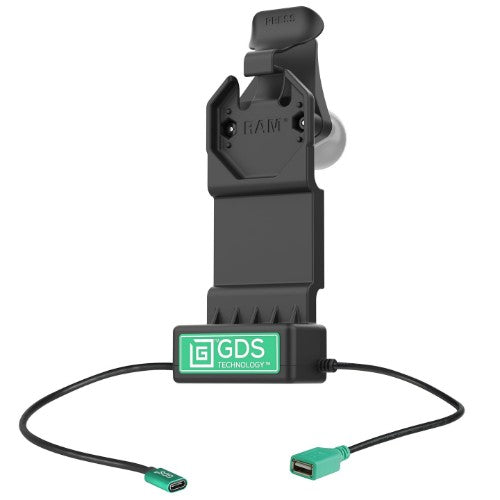

- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™
Description

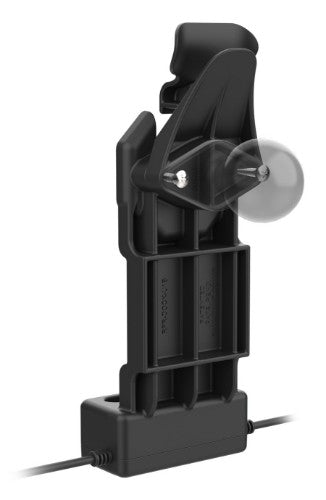

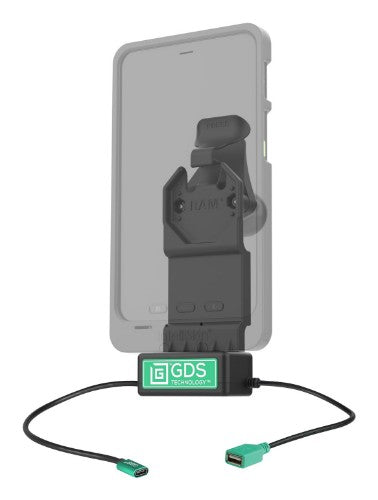

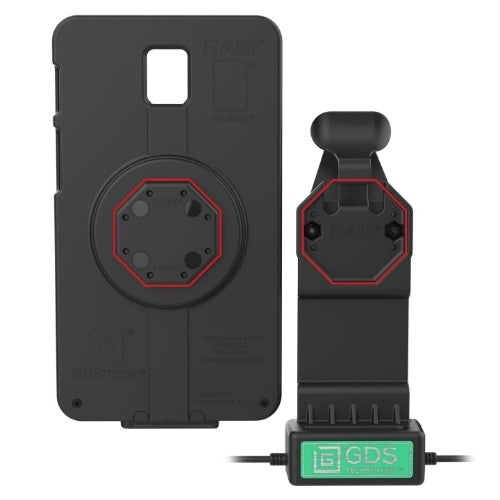

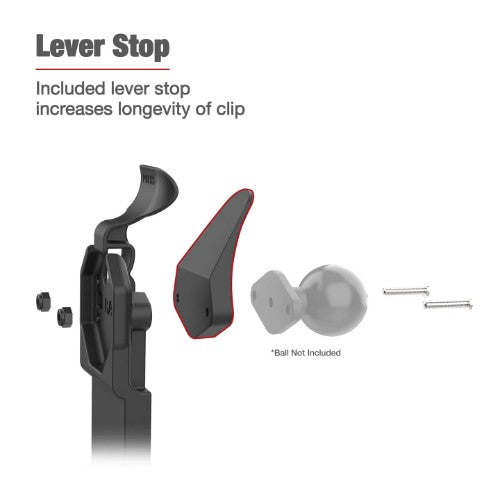

The GDS® Uni-Conn™ Dock + Single USB-A (RAM-GDS-DOCK-U1CDU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to one peripheral device into your solution with the USB-A female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.Specifications
| Performance | |
|---|---|
| Basic device type | Tablet |
| Brand compatibility | Samsung |
| Compatibility | Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+ |
| Product colour | Black, Green |
| Material | Composite |
| Ports & interfaces | |
| Docking connector type | USB Type-C |
| USB Power Delivery up to | 60 W |
| Power | |
| Power source type | DC |
| Power consumption (max) | 60 W |
| DC output voltage | 20, +5V |
| DC output current | 3 A |
| Weight & dimensions | |
| Cable length | 0.215 m |
| Weight | 249.475804 g |
| Packaging data | |
| Quantity | 1 |
| Design | |
| Product colour | Black, Green |
| Material | Composite |
| Technical details | |
| Quantity | 1 |
| Cable length | 0.215 m |
