92mm, 5000 RPM, 43 dB
This CPU heat sink is designed for certain Supermicro X12 generation systems equipped with 3rd Generation Intel Xeon Scalable Processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
£90.00
Key Features
- 4U Active CPU Heat Sink
- For 3rd Generation Intel Xeon Scalable Processors
- Socket LGA4189
Description

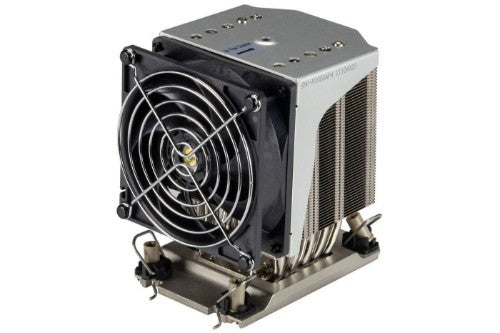

Supermicro 4U Active CPU Heat Sink Socket LGA4189 (SNK-P0080AP4)This CPU heat sink is designed for certain Supermicro X12 generation systems equipped with 3rd Generation Intel Xeon Scalable Processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Rotational speed (max) | 5000 RPM |
| Thermal Design Power (TDP) | 270 W |
| Noise level (high speed) | 43 dB |
| Type | Air cooler |
| Fan diameter | 9.2 cm |
| Supported processor sockets | LGA 4189 |
| Compatible processor series | Intel® Xeon® |
| Design | |
| Fan connector | 4-pin |
| Product colour | Black, Stainless steel |
| Technical details | |
| Thermal Design Power (TDP) | 270 W |
| Noise level (high speed) | 43 dB |
| Type | Air cooler |
| Fan diameter | 9.2 cm |
| Supported processor sockets | LGA 4189 |
| Compatible processor series | Intel® Xeon® |
| Fan connector | 4-pin |
| Compliance certificates | REACH, RoHS |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Thermal Design Power (TDP) | 270 W |
| Colour | |
| Product colour | Black, Stainless steel |
| Weight & dimensions | |
| Width | 92 mm |
| Depth | 25 mm |
| Height | 92 mm |
| Other features | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
