300 dpi, 2.3" TFT 320x240, 64MB SDRAM, 128MB Flash, SD Card up to 32GB, Ribbon 110m, Media width 20-112mm, PCBA1, USB 2.0, RS-232

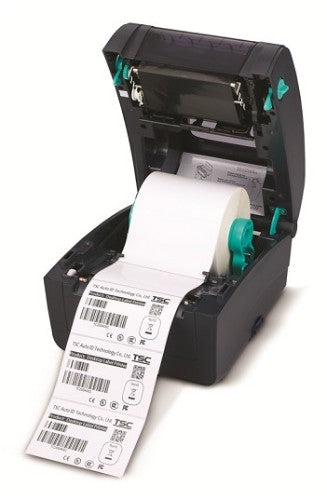

The TC Series is designed for ease of use. Media and ribbons are easy to install. The printer uses thermal transfer ribbons of up to 110 meters in length on 0.5" notched cores. The media cabinet holds label rolls up to 5 inches in diameter on 1" or 1.5" cores and are easily loaded into a center biased spring loaded roll holder.
Standard communications interfaces for TC210 and TC310 models includes Ethernet, USB 2.0, USB host port (to support optional scanners and keyboards) and serial RS-232.
£474.26
Description
The TSC TC series of desktop thermal barcode printers is based on the best features our bestselling TTP-245C Series with some colorful improvements. Like the TTP-245C Series, the TC features a small footprint and the high performance that customers have come to expect from TSC. Durable, reliable and fast, TC series printers produce 4-inch-wide labels, tags or receipts at up to 6 ips, offering a price-performance combination that is unmatched by other desktop thermal barcode printers on the market.The TC Series is designed for ease of use. Media and ribbons are easy to install. The printer uses thermal transfer ribbons of up to 110 meters in length on 0.5" notched cores. The media cabinet holds label rolls up to 5 inches in diameter on 1" or 1.5" cores and are easily loaded into a center biased spring loaded roll holder.
Standard communications interfaces for TC210 and TC310 models includes Ethernet, USB 2.0, USB host port (to support optional scanners and keyboards) and serial RS-232.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Printing | |
| Rotated printing | Yes |
| Minimum print length | 11.4 m |
| Colour | No |
| Printing colours | Black |
| Print speed | 102 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Print technology | Direct thermal / Thermal transfer |
| Number of printable dots | 12 dot |
| Design | |
| LED indicators | Yes |
| Housing material | Plastic |
| Display diagonal | 5.84 cm (2.3") |
| Colour display | Yes |
| Display resolution | 320 x 240 pixels |
| Display | TFT |
| Product colour | Navy |
| Built-in display | Yes |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CoC-Mexico |
| Display | |
| Display diagonal | 5.84 cm (2.3") |
| Colour display | Yes |
| Display resolution | 320 x 240 pixels |
| Display | TFT |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Paper handling | |
| Ribbon width | 4 cm |
| Ribbon length | 110 m |
| Media thickness | 0.06 - 0.19 mm |
| Maximum roll diameter | 12.7 cm |
| Maximum label width | 10.6 cm |
| Maximum label length | 11.4 m |
| Core diameter | 3.81 cm |
| Core diameters supported | 12.7 mm (0.5") |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Optional connectivity | Bluetooth, Wireless LAN |
| Connectivity technology | Wired |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Clock function | Yes |
| Built-in barcodes | Code 93, GS1 DataBar, Plessey, 2D, Code-128 Codabar Library, ITF-14, QR Code, AZTECCODE, Code128UCC, TELEPEN, TELEPENN, Deutsche Post Identcode, MSI, Deutsche Post Leitcode, GS1 DataMatrix, Macro PDF417, Code 11, UPC-A, Code 128 (A/B/C), EAN128, MaxiCode, EAN13, UPC-E, EAN8, PDF417, Code 39, Planet, Code 49, POSTNET |
| Number of fonts | 8 |
| Ribbon width | 4 cm |
| Ribbon length | 110 m |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Compatible memory cards | SD |
| Built-in processor | Yes |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CoC-Mexico |
| Page description languages | TSPL-EZ |
| Power | |
| AC adapter output voltage | 2.5 V |
| AC adapter output current | 3.75 A |
| Power consumption (printing) | 90 W |
| AC input voltage | 100- 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Product colour | Navy |
| Built-in barcodes | Code 93, GS1 DataBar, Plessey, 2D, Code-128 Codabar Library, ITF-14, QR Code, AZTECCODE, Code128UCC, TELEPEN, TELEPENN, Deutsche Post Identcode, MSI, Deutsche Post Leitcode, GS1 DataMatrix, Macro PDF417, Code 11, UPC-A, Code 128 (A/B/C), EAN128, MaxiCode, EAN13, UPC-E, EAN8, PDF417, Code 39, Planet, Code 49, POSTNET |
| Number of fonts | 8 |
| Ribbon width | 4 cm |
| Ribbon length | 110 m |
| Maximum label width | 10.6 cm |
| Maximum label length | 11.4 m |
| LED indicators | Yes |
| Compatible memory cards | SD |
| Clock function | Yes |
| Sustainability certificates | ENERGY STAR |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CoC-Mexico |
| Software | |
| Bundled software | Windows labeling |
| System requirements | |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 203 mm |
| Depth | 259.3 mm |
| Height | 191.5 mm |
| Weight | 2.3 kg |
| Package type | Box |
| Packaging data | |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | DC |
| Bundled software | Windows labeling |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Quantity per pack | 1 pc(s) |
| Clock function | Yes |
| LED indicators | Yes |
