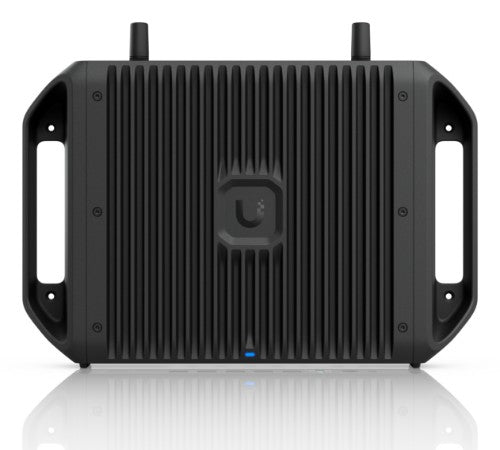

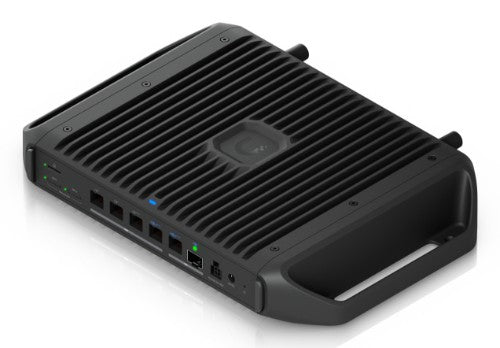

Cloud Gateway Industrial, 4 (2 PoE+++, 2 PoE+) (2.5G/1G/100M), 1 (PoE+++) (10G/5G/2.5G/1G/100M), 1 (10G/1G) SFP+, WiFi 7, 115 m², microSD storage
£505.88
Description
Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.Specifications
| Design | |
|---|---|
| LED indicators | Status |
| Mounting type | Rack/Desktop/Wall |
| Product colour | Black |
| Features | |
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | RP-SMA |
| Antennas quantity | 2 |
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
| Number of processors installed | 1 |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
| Number of processors installed | 1 |
| Internal memory type | DDR4 |
| Internal memory | 3000 MB |
| Control display unit | No |
| Processor model | Cortex-A73 |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Mounting type | Rack/Desktop/Wall |
| Product colour | Black |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
| Ethernet LAN data rates | 1000,2500,10000 Mbit/s |
| WLAN data transfer rates supported | 6,9,12,18,24,36,48,54,5.5,1,2,11,6.5,2402,1732 Mbit/s |
| Wi-Fi | Yes |
| Data transfer rate | 4.3 Gbit/s |
| Load balancing | Yes |
| Security | |
| VLAN support | Yes |
| Firewall security | Yes |
| Network address translation (NAT) | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45), SFP+ |
| Number of simultaneous SIM cards | 2 |
| Ethernet LAN (RJ-45) ports | 5 |
| SIM card slot | Yes |
| DC-in jack | Yes |
| SFP+ ports quantity | 1 |
| Management features | |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Power | |
| Power supply | 350 W |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 100 - 240 V |
| Heat dissipation | 85 BTU/h |
| DC input voltage | 50 - 57 V |
| Power consumption (max) | 28 W |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection (air) | 8 kV |
| Electrostatic Discharge (ESD) protection (contact) | 4 kV |
| Electromagnetic (EMP) protection | Yes |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Software | |
| Compatible operating systems | Android, iOS |
| Weight & dimensions | |
| Weight | 2.4 kg |
| Width | 307.9 mm |
| Height | 43.7 mm |
| Depth | 203.5 mm |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Built-in processor | Yes |
| Antenna type | Internal |
| WLAN data transfer rates supported | 6,9,12,18,24,36,48,54,5.5,1,2,11,6.5,2402,1732 Mbit/s |
| Wi-Fi | Yes |
| Processor frequency | 2200 MHz |
| Number of simultaneous SIM cards | 2 |
| Number of processors installed | 1 |
| Manual | Yes |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | RP-SMA |
| AC adapter included | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Indication | |
| LED indicators | Status |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 3000 MB |
| Display | |
| Control display unit | No |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | RP-SMA |
| Antennas quantity | 2 |
