5.15 to 6.875 GHz, 26 dBi, 30+ km, IPX6, 420 x 140 mm
£143.80
Description

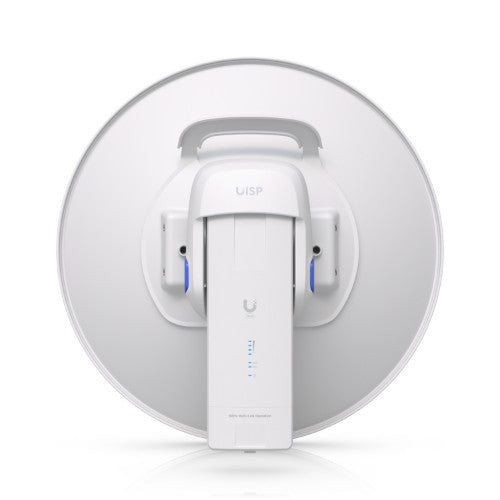

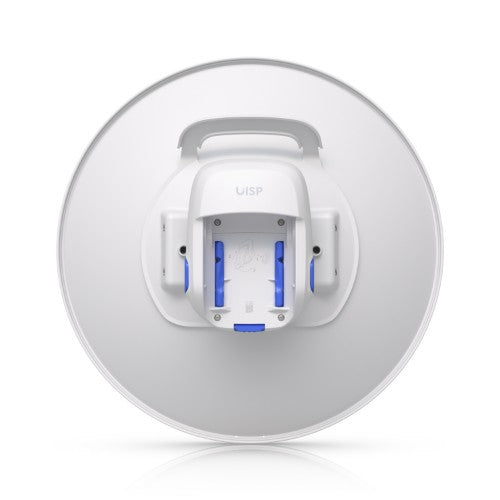

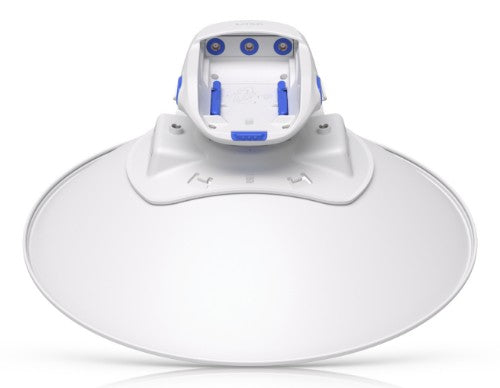

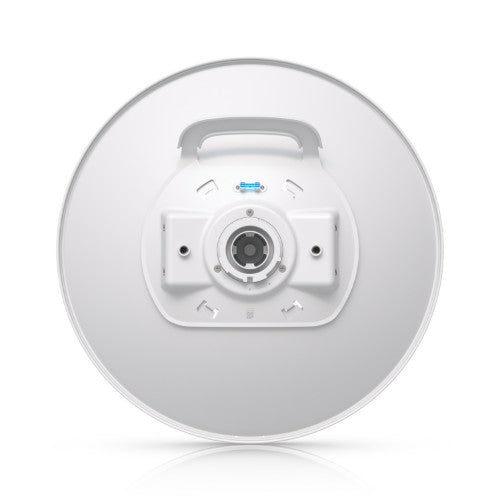

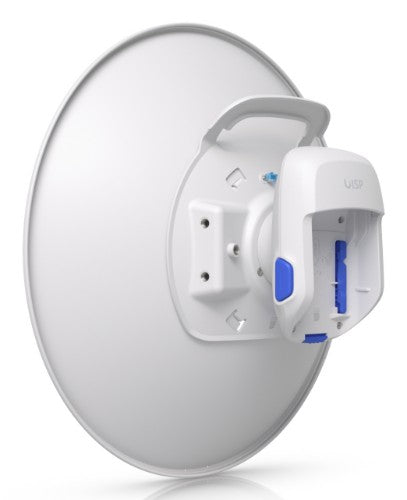

5-7 GHz compact dish with 26 dBi gain and radio direct connect.Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 26 dBi |
| Frequency band | 5.15 - 6.875 GHz |
| Features | |
| Ultraviolet (UV) resistant | Yes |
| Survival wind speed | 200 km/h |
| Protection features | Wind resistant |
| Downtilt | 0° |
| Housing material | Aluminium, Galvanized steel, Polycarbonate (PC) |
| Isolation | 15 dB |
| International Protection (IP) code | IPX6 |
| Wind load | 348 |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Pole |
| Product colour | White |
| Antenna connector type | RP-SMA |
| Maximum outdoor range | 30000 m |
| Antenna gain level (max) | 26 dBi |
| Frequency band | 5.15 - 6.875 GHz |
| Certificates | |
| Compliance certificates | National Defense Authorization Act (NDAA) |
| Weight & dimensions | |
| Weight | 3.4 kg |
| Height | 140 mm |
| Diameter | 42 cm |
| Technical details | |
| Antenna gain level (max) | 26 dBi |
| Frequency band | 5.15 - 6.875 GHz |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Pole |
| Antenna connector type | RP-SMA |
| Compliance certificates | National Defense Authorization Act (NDAA) |
| Colour | |
| Product colour | White |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
