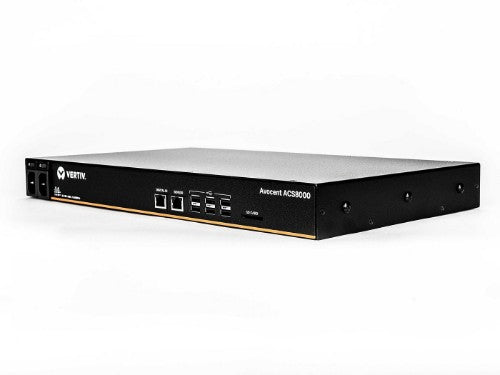

Avocent ACS 8000 8-Port Console Server with Dual AC Power Supply and Analog Modem (ACS8008MDAC-400)
Eight auto pinout sensing serial ports and 8 USB 2.0 ports, allowing up to 16 total serial connections
Fast, automated configuration with Zero-Touch Provisioning; auto pinout sensing of port settings and auto-discover of power devices
Single point of access to ensure security for all downstream equipment; updated Linux operating system and support for DSView management software
Dual-core ARM processor architecture with large memory, dual gigabit-Ethernet ports and dual gigabit-Fiber ports for redundancy
Auto-discovery and native command settings for monitoring and managing Vertiv and third-party PDU and UPS equipment
£4,518.75
Key Features
- Secure in-band and out-of-band network remote management
- Fast, automated configuration with Zero Touch Provisioning
- Access and troubleshoot remote locations using automatic network failover
- No need for adaptors with automatic Cyclades™ and Cisco pin-out conversions
- Compliance with data center access and security policies
- Console event logging and notification
- Integrated support for 1Gb SFP fiber modules
- USB ports to support new IT equipment and external devices
Description
1 GB| DDR3 SDRAM| Twisted Pair, Optical Fiber| 2 x Network (RJ-45)| 8 x USB| 8 x Serial Port| 10/100/1000Base-T, 1000Base-X| Gigabit Ethernet| Rack-mountableEight auto pinout sensing serial ports and 8 USB 2.0 ports, allowing up to 16 total serial connections
Fast, automated configuration with Zero-Touch Provisioning; auto pinout sensing of port settings and auto-discover of power devices
Single point of access to ensure security for all downstream equipment; updated Linux operating system and support for DSView management software
Dual-core ARM processor architecture with large memory, dual gigabit-Ethernet ports and dual gigabit-Fiber ports for redundancy
Auto-discovery and native command settings for monitoring and managing Vertiv and third-party PDU and UPS equipment
Specifications
| Features | |
|---|---|
| Zero Touch Provisioning (ZTP) | Yes |
| Web-based management | Yes |
| Temperature sensor | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Internal modem | Yes |
| Technical details | |
| Zero Touch Provisioning (ZTP) | Yes |
| Web-based management | Yes |
| Temperature sensor | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Internal modem | Yes |
| Safety | UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
| Management features | |
| Management protocols | CLI, HTTP/ HTTPS, SNMP |
| Security | |
| One-time password (OTP) | Yes |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2 |
| IP address filtering | Yes |
| Authentication method | LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP) |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| USB 2.0 ports quantity | 8 |
| Serial ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| Console port | RJ-45 |
| AC outlet types | C13 coupler |
| Software | |
| Operating system installed | Embedded LINUX |
| Processor | |
| Processor family | ARM Cortex-A9 |
| Processor architecture | ARM Cortex-A9 |
| Processor cores | 2 |
| Processor frequency | 667 MHz |
| Memory | |
| RAM type | DDR3L |
| RAM capacity | 1024 MB |
| eMMC capacity | 16 GB |
| Flash memory | 16000 MB |
| Weight & dimensions | |
| Weight | 3.4 kg |
| Dimensions (WxDxH) | 438.2 x 241.3 x 44.5 mm |
| Power | |
| Power consumption (max) | 35 W |
| Power source type | AC |
| AC input voltage | 101 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 20 W |
| Number of power supply units | 2 |
| Input current | 0.1 A |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber |
| Certificates | |
| Certification | FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
| Other features | |
| Safety | UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU) |
