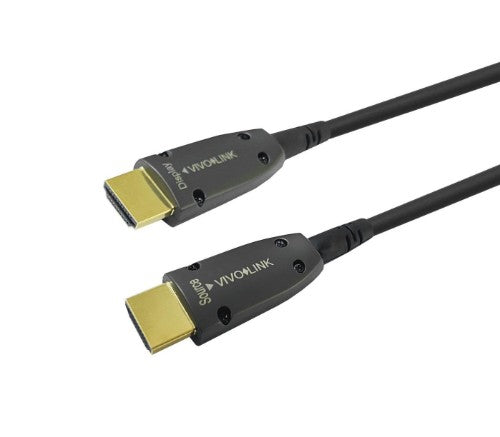

Armoured Optic HDMI 4K Cable 20m
Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Maximum pressure load on cable: 305 kg.
£329.15
Key Features
- Cable use Class-1 Professional laser with 12 years warranty
- CEC & ARC Support
- Cable is built with military standard optical fiber
- Power consumption only 0,25W
- Optic fiber is covered with copper wires
- Kevlar filling inside makes the cable extremely strong and robust
- Lock ring in cable head secure no damage by pulling in cable
- Cable head is made by molded metal
- Connector pins are gold bladed for a reliable and perfect contact
- The optical fiber converter is extremly high quality chip set
- Minimum bend radius: 20mm
- Unlimited number of bends with bend radius down to 20mm
- working temperature: -20 degree to + 60 degree
Description
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.Typical installation:
Places where high resolution is required on long distance.
Tensile Strength (Pull resistance): 20 kg.
Maximum pressure load on cable: 305 kg.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| Dolby technologies | DTS-HD Master Audio |
| Colour depth | 16 bit |
| HDMI Ethernet channel | Yes |
| Product colour | Black |
| Cable length | 20 m |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Fiber optic |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Cable jacket material | Low smoke zero halogen (LSZH) |
| HDCP version | 2.2 |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Weight | 993 g |
| Cable diameter | 5 mm |
| Package weight | 390 g |
| Package width | 201 mm |
| Package depth | 193 mm |
| Package height | 45 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package weight | 390 g |
| Package width | 201 mm |
| Package depth | 193 mm |
| Package height | 45 mm |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Width | 201 mm |
| Height | 45 mm |
| Depth | 193 mm |
