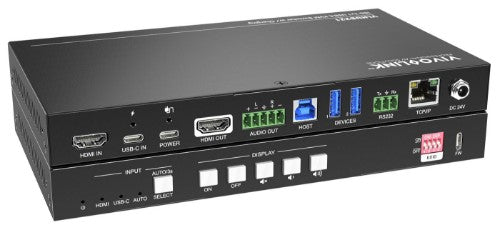

4K 2x1 Meeting Room HUB + Switcher w/soft Codec & CEC
HDMI 2.0 2x1 Presentation Switcher.
The switcher is designed to switch HDMI input or USB-C input to one HDMI output and at the same act as USB3.0 HUB for conference cameras. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D. In addition, there is smart built-in EDID setting can be selected by the 4-pin DIP switch on the front panel.
The switcher supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to a balanced analog audio output.

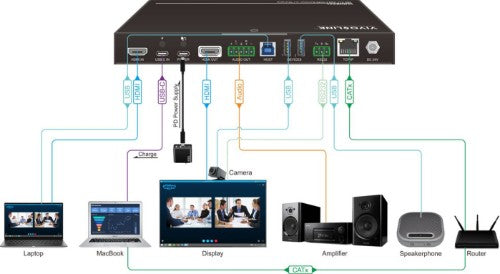

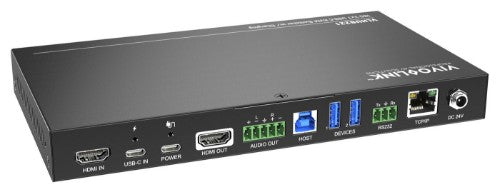

It also supports device extension by providing one type-B USB port for host connection, and two type-A USB ports for HID devices such as camera, microphone, keyboard etc.

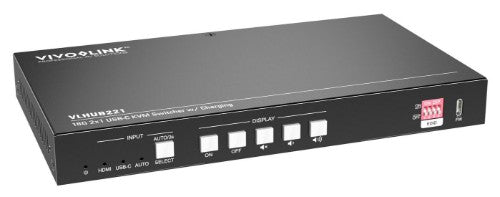

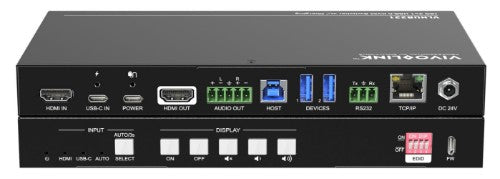

The switcher features multiple methods of control. When in the AUTO mode, the switcher will automatically switch to the first detected source device. When the active source is removed, the switcher will switch to the lowest numbered input. The switcher can be manually controlled by the front panel buttons and RS232 command. CEC allows the display device can be controlled by the front panel buttons and RS232 CEC commands.
Support following formats: DisplayLink, DP Alt mode, DisplayPort
£480.04
Key Features
- 18G 2x1 auto switcher with HDMI and USB-C inputs
- USB3.0 data rate up to 2,8Gbit/s and 1 Amp power
- Input trigger function that can turn on/off 3rd party device via CEC or RS232 command
- Provides charging on USB-C port up to 100W
- Supports HDMI 2.0, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision, HDCP 2.2
- LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital®
- Plus, DTS: X™, and DTS-HD® Master Audio™ pass-through
- Controllable via front panel buttons and RS232
Description
4K 2x1 Meeting Room HUB + Switcher w/soft Codec & CEC.HDMI 2.0 2x1 Presentation Switcher.
The switcher is designed to switch HDMI input or USB-C input to one HDMI output and at the same act as USB3.0 HUB for conference cameras. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D. In addition, there is smart built-in EDID setting can be selected by the 4-pin DIP switch on the front panel.
The switcher supports stereo and multichannel audio on the HDMI inputs. In addition to the audio embedded in the HDMI output stream, the audio is simultaneously de-embedded to a balanced analog audio output.
It also supports device extension by providing one type-B USB port for host connection, and two type-A USB ports for HID devices such as camera, microphone, keyboard etc.
The switcher features multiple methods of control. When in the AUTO mode, the switcher will automatically switch to the first detected source device. When the active source is removed, the switcher will switch to the lowest numbered input. The switcher can be manually controlled by the front panel buttons and RS232 command. CEC allows the display device can be controlled by the front panel buttons and RS232 CEC commands.
Support following formats: DisplayLink, DP Alt mode, DisplayPort
Specifications
| Performance | |
|---|---|
| Supported video modes | 2160p |
| USB connector type | USB Type-A |
| USB connector gender | Female |
| Data transfer rate (max) | 0.35 Gbit/s |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI version | 2.0 |
| HDCP | Yes |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| LED indicators | Status |
| HDMI ports quantity | 2 |
| High Dynamic Range (HDR) supported | Yes |
| HDCP version | 2.2 |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Integrated USB cable | No |
| Power | |
| Input voltage | 230 V |

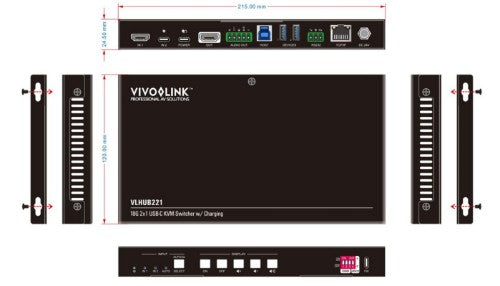

| Weight & dimensions | |
| Weight | 40 g |
| Package weight | 50 g |
| Packaging data | |
| Package weight | 50 g |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
