18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (70m) with USB 2.0
(4K30/1080P) or 131ft /40m (4K60) via a single CAT6A/7 cable.
The transmitter features with 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host and 3x USB Device ports. The receiver features with 1x HDMI output, 2x USB Device ports. Both transmitter and receiver support 3.5mm analog audio de-embedding, EDID management, bi-directional IR and RS-232 signal pass-through. This product supportsbi-directional 24V POC function.The Extender offers the most convenient solution for video extension via a single CAT cable with long distance capability, and it is the perfect solution for home/ commercial application.
£502.13
Key Features
- Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz (YUV 4:4:4)
- USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging up to 60 watts
- USB-C and HDMI signal inputs support auto or manual switching mode
- Auto switching supports HDMI 5V or signal detect selection
- HDR, HDR10, HDR10+, Dolby Vision, HLG
Description

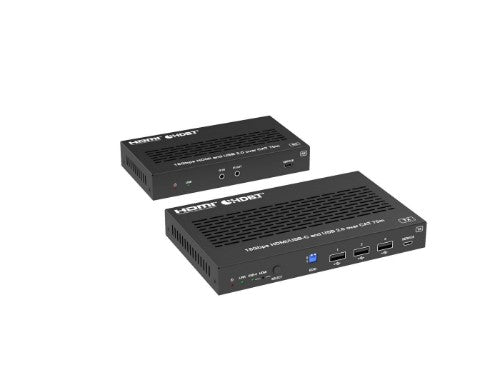

This 18Gbps HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals up to 230ft/70m(4K30/1080P) or 131ft /40m (4K60) via a single CAT6A/7 cable.

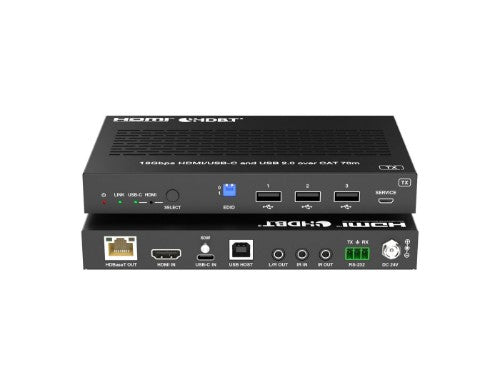

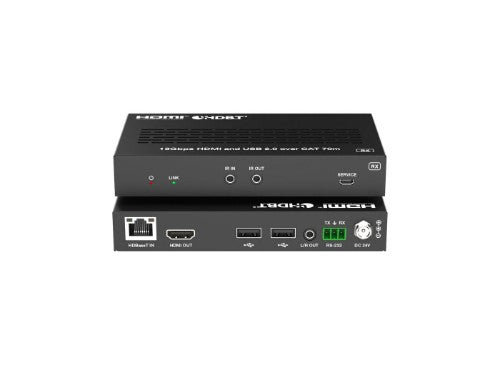

The transmitter features with 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host and 3x USB Device ports. The receiver features with 1x HDMI output, 2x USB Device ports. Both transmitter and receiver support 3.5mm analog audio de-embedding, EDID management, bi-directional IR and RS-232 signal pass-through. This product supportsbi-directional 24V POC function.The Extender offers the most convenient solution for video extension via a single CAT cable with long distance capability, and it is the perfect solution for home/ commercial application.
Specifications
| Performance | |
|---|---|
| Supported video modes | 2160p |
| USB connector type | USB Type-A |
| USB connector gender | Female |
| Data transfer rate (max) | 0.35 Gbit/s |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI version | 2.0b |
| HDCP | Yes |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| LED indicators | Status |
| HDMI ports quantity | 2 |
| HDCP version | 2.3 |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Integrated USB cable | No |
| Power | |
| Input voltage | 230 V |
| Weight & dimensions | |
| Weight | 40 g |
| Package weight | 50 g |
| Packaging data | |
| Package weight | 50 g |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
