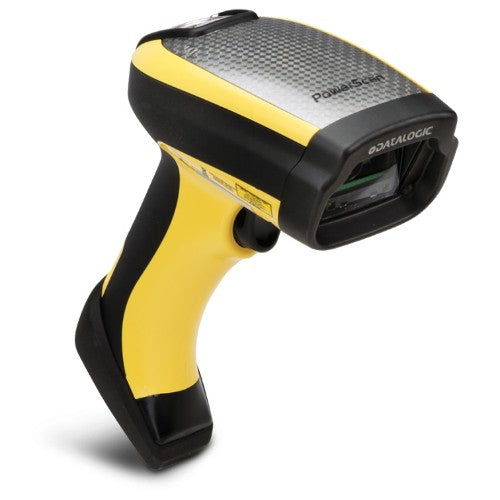

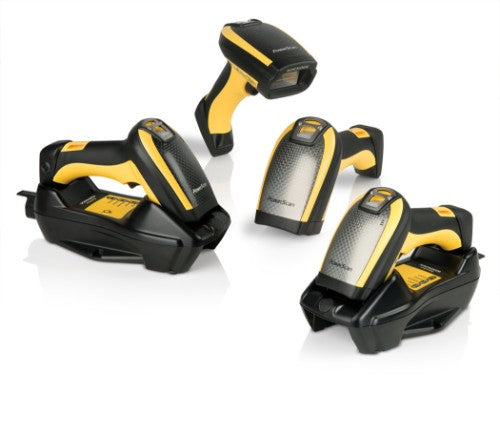

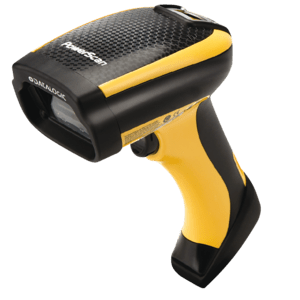

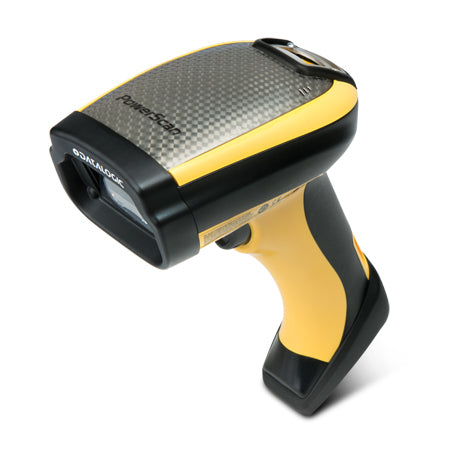

PowerScan D9531, Direct Part Marking Evo, RS-232 Kit (Kit inc. Scanner and Cable CAB-434.)
The PowerScan™ PD9530-DPM Evo reader is a rugged handheld area imager specifically addressed for DPM applications. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the type of DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.
The intuitive aiming system provides the highest first-pass reading rate. Additionally, the PowerScan 9530-DPM Evo area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users’ eyes.
Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.
£724.14
Key Features
- Water and Particulate Sealing Rating IP65
- Enhanced Decoding software will support any kind of Direct Part Marking (DPM) technology
- Handle shape, well-balanced
Description
Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.The PowerScan™ PD9530-DPM Evo reader is a rugged handheld area imager specifically addressed for DPM applications. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the type of DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.
The intuitive aiming system provides the highest first-pass reading rate. Additionally, the PowerScan 9530-DPM Evo area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users’ eyes.
Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code |
| Yaw reading angle | 0 - 40° |
| Tilt reading angle | 0 - 360° |
| Sensor type | Photo diode |
| Scanner type | 1D/2D |
| Pitch reading angle | 0 - 40° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Optical sensor resolution (W x H) | 864 x 544 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Performance | |
| International Protection (IP) code | IP65 |
| Product colour | Black, Yellow |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP65 |
| Product colour | Black, Yellow |
| Power | |
| Power source type | DC |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 74 mm |
| Depth | 110 mm |
| Height | 212 mm |
| Weight | 330 g |
| Technical details | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP65 |
| Product colour | Black, Yellow |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |
| Cables included | RS-232 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Packaging content | |
| Cables included | RS-232 |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
