15.6" FHD, Pcap, N4200, 4G RAM, 128G SSD, Win10, WiFi/BT, EU Power Cord
£1,193.23
Key Features
- Low power and fanless system design
- Built-in Intel Pentium® N4200
- 15.6" monitor with 16:9 widescreen display
- IP65-rated front panel for water and dust resistance

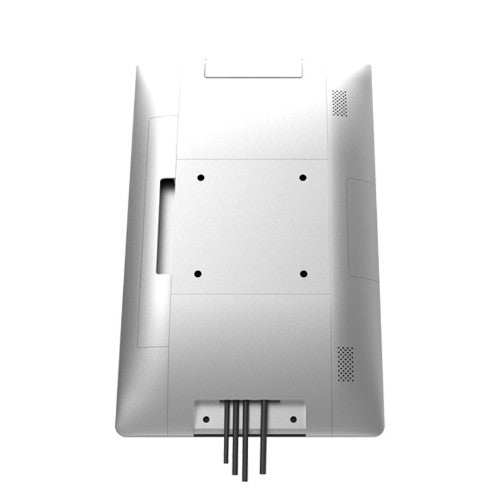

- Clean back cover design with 3 Way IO cable routing
- Supports both landscape and portrait screen orientations
- VESA 100 mm standard mounting holes for varied mounting demands
- PoE supported on Pentium® N4200 platform
- Support DeviceOn/iService software for remote device management
Description
UTC-115 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas.Specifications
| Display | |
|---|---|
| Display number of colours | 262144 colours |
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 170° |
| Touchscreen technology | Projected capacitive system |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Display brightness | 300 cd/m² |
| Processor | |
| Processor cores | 4 |
| Processor cache | 2 MB |
| Processor frequency | 1.1 GHz |
| Processor family | Intel® Pentium® |
| Processor model | N4200 |
| Processor manufacturer | Intel |
| Memory | |
| Internal memory type | DDR3L-SDRAM |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| Internal memory | 4 GB |
| Memory clock speed | 1600 MHz |
| Maximum internal memory | 8 GB |
| Storage | |
| Total storage capacity | 128 GB |
| SSD capacity | 128 GB |
| Storage media | SSD |
| Graphics | |
| Graphics card manufacturer | Intel |
| Graphics card | HD Graphics 505 |
| Features | |
| Certification | FCC, CB, UL, CCC, BSMI IP65 |
| Harmonized System (HS) code | 84715000 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Hard drive | |
| Total storage capacity | 128 GB |
| SSD capacity | 128 GB |
| Ports & interfaces | |
| DVI port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| RS-232 ports | 2 |
| Microphone in | Yes |
| Line-out | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Video | |
| Graphics card manufacturer | Intel |
| Graphics card | HD Graphics 505 |
| Design | |
| Product colour | Silver |
| Chassis type | All-in-One |
| Software | |
| Operating system installed | Windows 10 |
| Power | |
| Power supply | 60 W |
| Power consumption (typical) | 26 W |
| AC adapter output voltage | 12 - 24 V |
| AC adapter output current | 5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | FCC, CB, UL, CCC, BSMI IP65 |
| Ergonomics | |
| VESA mounting | Yes |
| Product colour | Silver |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Weight & dimensions | |
| Width | 398.8 mm |
| Depth | 29.5 mm |
| Height | 248.2 mm |
| Weight | 2.4 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| Technical details | |
| Product colour | Silver |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Chassis type | All-in-One |
