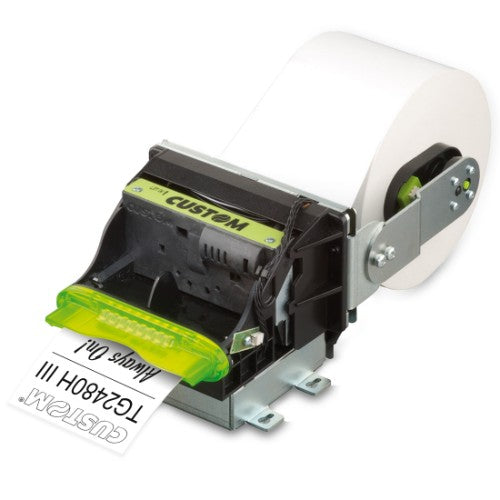

80mm ticket / receipt printer, 8 dots/mm, 203 DPI, 150mm/sec, RS232 + USB, 260.2x102x130.2 mm, 1250 g
- Metal frame (galvanized/aluminium alloy)
- High print quality (200 DPI)
- Paper width: 80mm
- Paper thickness: from 63 to 85 μm
- Printing > 150 mm/sec
- RS232 and USB interfaces
- Barcodes: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE
- Characters: European, International, Portuguese, Nordic, Arabic, Chinese and Russian
- Highly reliable cutter: over 1,000,000 cuts
- Sensors: head temperature, paper presence, anti paper jamming, ticket collection, paper end and near paper end
£304.18
Key Features
- Patented Anti Jamming System
- Multi-position paper roll
- Metal structure that provides increased rigidity for the printing mechanism and facilitates motor heat dissipation, resulting in improved stability and reliability over time
- Improved distribution of the head-roller pressure, resulting in improved printing quality
Description
80mm ticket / receipt printer- Metal frame (galvanized/aluminium alloy)
- High print quality (200 DPI)
- Paper width: 80mm
- Paper thickness: from 63 to 85 μm
- Printing > 150 mm/sec
- RS232 and USB interfaces
- Barcodes: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, QRCODE
- Characters: European, International, Portuguese, Nordic, Arabic, Chinese and Russian
- Highly reliable cutter: over 1,000,000 cuts
- Sensors: head temperature, paper presence, anti paper jamming, ticket collection, paper end and near paper end
Specifications
| Printing | |
|---|---|
| Type | POS printer |
| Print technology | Thermal |
| Print speed | 150 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Printable dot numbers | 8 dot |
| Performance | |
| Type | POS printer |
| Print technology | Thermal |
| Print speed | 150 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Built-in barcodes | 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, ITF, PDF417, QR Code, UPC-A, UPC-E |
| Paper handling | |
| Supported paper width | 80 mm |
| Printing media thickness | 85 µm |
| Maximum roll diameter | 9 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Network | |
| Ethernet LAN | Yes |
| Print technology | |
| Type | POS printer |
| Print technology | Thermal |
| Print speed | 150 mm/sec |
| Print quality | |
| Maximum resolution | 203 x 203 DPI |
| Technical details | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Product colour | Black |
| Built-in barcodes | 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, ITF, PDF417, QR Code, UPC-A, UPC-E |
| Autocutter durability | 1 million cuts |
| Cutter | Yes |
| Features | |
| Internal memory | 0.256 MB |
| Flash memory | 1 MB |
| Product colour | Black |
| Built-in barcodes | 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, ITF, PDF417, QR Code, UPC-A, UPC-E |
| Autocutter durability | 1 million cuts |
| Cutter | Yes |
| Receive buffer | 2 KB |
| Design | |
| Product colour | Black |
| Memory | |
| Internal memory | 0.256 MB |
| Flash memory | 1 MB |
| Power | |
| Power source type | DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 260.2 mm |
| Depth | 130.2 mm |
| Height | 102 mm |
| Weight | 1.25 kg |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
