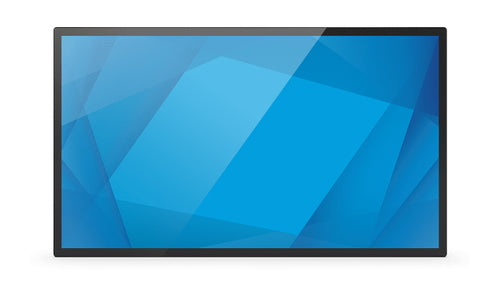

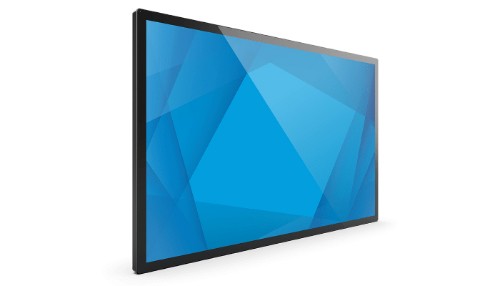

54.6'', TFT LCD, 16:9, 3840 x 2160, 60 Hz, 1100:1, 2x HDMI 2.0, USB, RJ45, 1271.8 mm x 742.6 mm x 60.2 mm Black
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.
Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

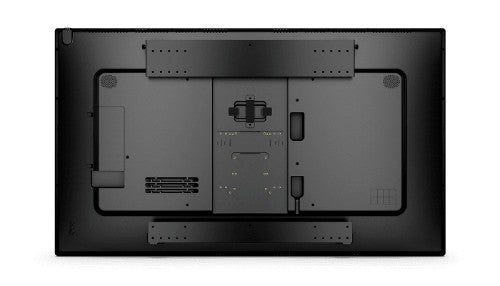

Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 5554L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 5554L for diverse international markets.
£1,996.25
Description
Elevate your applications with Elo’s 5554L 55‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 5554L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 55‑inch tablet.Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.
Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 5554L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 5554L for diverse international markets.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Panel type | LCD |
| Display number of colours | 1.07 billion colours |
| Number of simultaneous touchpoints | 40 |
| Touchscreen | Yes |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display technology | LCD |
| Display diagonal | 138.7 cm (54.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 430 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1100:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Vertical scan range | 24 - 64 Hz |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 135 kHz |
| Maximum refresh rate | 60 Hz |
| Multi-touch | Yes |
| Ports & interfaces | |
| USB connector type | Mini-USB A, USB Type-A |
| DisplayPort version | 1.4 |
| USB port | Yes |
| HDMI version | 2.0 |
| Wi-Fi | No |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 2 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Panel mounting interface | 400 x 400,600 x 600 mm |
| Certification | UL, FCC, cUL, IC (Canada), CB, CE, VCCI, RCM, CCC/CEL, China RoHS, NOM, UL60950, IK07 |
| VESA mounting | Yes |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| HDCP | Yes |
| Wi-Fi | No |
| Power | |
| Power consumption (sleep) | 1.52 W |
| Power consumption (typical) | 111.87 W |
| Power consumption (standby) | 0.38 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 1271.8 mm |
| Depth | 742.6 mm |
| Height | 60.2 mm |
| Weight | 50 kg |
| Packaging data | |
| Package width | 1460 mm |
| Package depth | 1040 mm |
| Package height | 225 mm |
| Package weight | 38.5 kg |
| Cables included | AC, USB |
| Packaging content | |
| Cables included | AC, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | UL, FCC, cUL, IC (Canada), CB, CE, VCCI, RCM, CCC/CEL, China RoHS, NOM, UL60950, IK07 |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | Mini-USB A, USB Type-A |
| Panel type | LCD |
| DisplayPort version | 1.4 |
| Number of simultaneous touchpoints | 40 |
| Sustainability certificates | ENERGY STAR |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Other features | |
| USB connector type | Mini-USB A, USB Type-A |
| Panel type | LCD |
| DisplayPort version | 1.4 |
| Number of simultaneous touchpoints | 40 |
| Wi-Fi | No |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD |
| Maximum refresh rate | 60 Hz |
