RD1916, 16 port, 19", 1280x1024, RS-232, RJ-45, 1U, 589x650x44 mm, 100-240VAC 0.5A 50-60Hz, Norwegian keyboard +Euro IEC

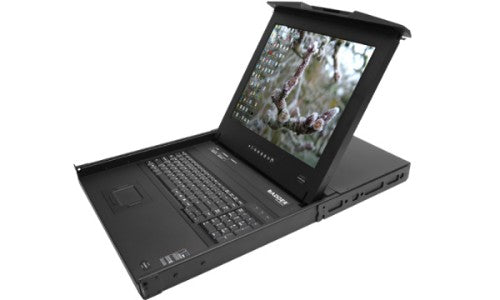

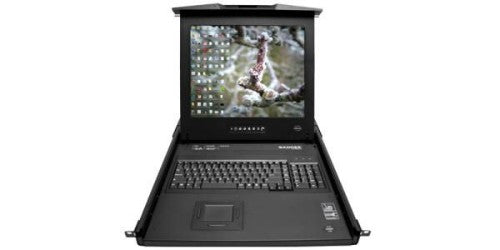

The 1U keyboard tray is available in most keyboard language layouts and features either a 17 inch or 19 inch premium quality Samsung SXGA 1280 x 1024 TFT LCD panel with touch-pad control and advanced OSD for device selection.
Control 16 computers directly from the tray together with a remote user. Expands to support up to 256 computers using CATx 1000 switches.
One local and remote user

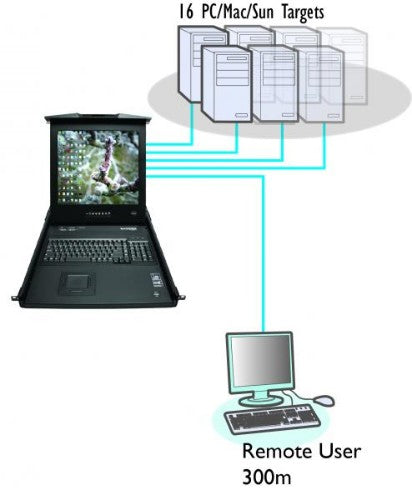

Enables a remote user to contect via a CATx cable and share access to the 16 computers with the local user.
Integrated CATx extender
The RDX 1000 can be controlled by a user from up to 300m away over CATx cable using the ADDERLink X200 or X100 receiver and the integrated CATx extender.
True multi-platform capability and connectivity
The RDX 1000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation.
Faultless video quality
The RDX 1000 provides exceptionally high video performance to local and remote users alike, supporting up to 1920 x 1200 resolutions with DDC emulation which is further enhanced by DC balancing to ensure full and true colour.
RS232 port
Integrated RS232 gives you the ability to control other external devices such as power management devices.
Configuration and extension
The RDX enables you to configure 16 separate users internally with unique access privileges all of which are stored within the switch.
Cascading a single CATx 1000 will enable control of 31 computers from the RDX or via remote connection. Expand further simply by cascading addition CATx1000 switches. RDX 1000 automatically detects cascade connections to support up to 256 computers.
Computer access modules
Flash upgradeable CAMs available for PS/2, USB and Sun keyboard and mouse support.
Locking power supply
The RDX1000 features a locking power supply to ensure continuous robust operation in busy rack environments.
Extensive keyboard options
A range of country specific keyboard and power configurations are available to suit a user's specific needs.
£2,206.25
Description
The ADDERView RDX 1000 is a complete server room solution with local and remote management.The 1U keyboard tray is available in most keyboard language layouts and features either a 17 inch or 19 inch premium quality Samsung SXGA 1280 x 1024 TFT LCD panel with touch-pad control and advanced OSD for device selection.
Control 16 computers directly from the tray together with a remote user. Expands to support up to 256 computers using CATx 1000 switches.
One local and remote user
Enables a remote user to contect via a CATx cable and share access to the 16 computers with the local user.
Integrated CATx extender
The RDX 1000 can be controlled by a user from up to 300m away over CATx cable using the ADDERLink X200 or X100 receiver and the integrated CATx extender.
True multi-platform capability and connectivity
The RDX 1000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation.
Faultless video quality
The RDX 1000 provides exceptionally high video performance to local and remote users alike, supporting up to 1920 x 1200 resolutions with DDC emulation which is further enhanced by DC balancing to ensure full and true colour.
RS232 port
Integrated RS232 gives you the ability to control other external devices such as power management devices.
Configuration and extension
The RDX enables you to configure 16 separate users internally with unique access privileges all of which are stored within the switch.
Cascading a single CATx 1000 will enable control of 31 computers from the RDX or via remote connection. Expand further simply by cascading addition CATx1000 switches. RDX 1000 automatically detects cascade connections to support up to 256 computers.
Computer access modules
Flash upgradeable CAMs available for PS/2, USB and Sun keyboard and mouse support.
Locking power supply
The RDX1000 features a locking power supply to ensure continuous robust operation in busy rack environments.
Extensive keyboard options
A range of country specific keyboard and power configurations are available to suit a user's specific needs.
Specifications
| Display | |
|---|---|
| Display type | TFT |
| Display | TFT LCD |
| Display diagonal | 48.3 cm (19") |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 160° |
| Viewable size, vertical | 30.1 cm |
| Viewable size, horizontal | 37.6 cm |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 300 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Technical details | |
| Number of computers controlled | 16 |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Material | Metal |
| Product colour | Black |
| Cables included | AC |
| Ports & interfaces | |
| DC-in jack | Yes |
| Keyboard | |
| Keyboard language | Norwegian |
| Built-in touchpad | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | DOS, Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x |
| Mac compatibility | Yes |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Input current | 0.5 A |
| Output current | 5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Weight | 17 kg |
| Width | 589 mm |
| Height | 650 mm |
| Depth | 44 mm |
| Packaging content | |
| Screws included | Yes |
| Mounting brackets included | Yes |
| Resource CD | Yes |
| AC adapter included | Yes |
| Cables included | AC |
| Number of screws | 8 |
| Number of cage nuts | 6 |
| Cage nuts included | Yes |
