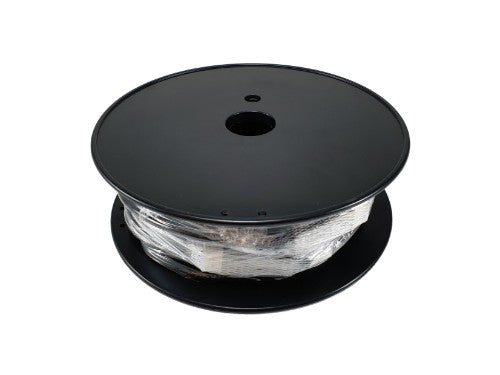

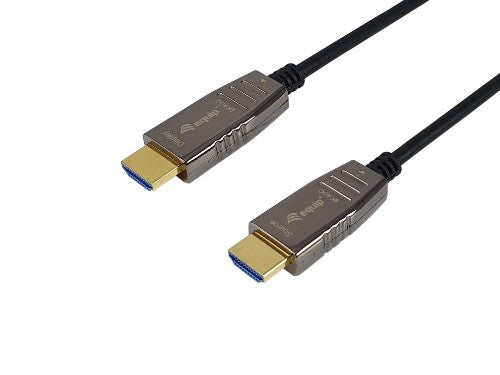

HDMI 2.1 Active Optical Cable, 15m, 8K/60Hz
HDMI 2.1 Active Optical Cable combines the advantages of both technologies to provide high-speed, high-bandwidth, and reliable connectivity for advanced audio and video applications. These cables use fiber optic technology to transmit signals over longer distances without any signal degradation or loss
Ideal for applications such as home theaters, conference rooms, classrooms, and digital signage installations where long-distance HDMI connectivity is required. These cables are also thinner, lighter, and more flexible than traditional copper cables, making them easier to install and manage.
By supporting a maximum bandwidth of 48 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
£60.00
Key Features
- HDMI Male to Male
- HDMI 2.1 compatible
- Supports HDMI Ethernet Channel (HEC)
- Supports video resolutions up to 8K/60Hz
- Bandwidth up to 48Gbps
- Supports 3D display, HDCP2.2 and HDR / EDID
- Supports video resolutions up to 8K/60Hz, 4K/120Hz
- Up to 1536 kHz audio sampling rate
- Dynamic HDR (HDR Dynamic Metadata)
- Enhanced Audio Return Channel (eARC)
- Variable Refresh Rate (VRR)
- Quick Media Switching (QMS)
- Quick Frame Transport (QFT)
- Auto Low Latency Mode (ALLM)
- Display Stream Compression (DSC)
- Zinc Alloy housing
- Gold-plated connectors for high transmission quality
- This AOC cable is single way transmissing, can only from Source to Display, please note the direction before using
Description
The equip 119451 is Active Optical Cables (AOC) are fiber optic cables that use electrical-to-optical conversion circuitry to transmit signals over longer distances with less signal loss and electromagnetic interference compared to traditional copper cables.HDMI 2.1 Active Optical Cable combines the advantages of both technologies to provide high-speed, high-bandwidth, and reliable connectivity for advanced audio and video applications. These cables use fiber optic technology to transmit signals over longer distances without any signal degradation or loss
Ideal for applications such as home theaters, conference rooms, classrooms, and digital signage installations where long-distance HDMI connectivity is required. These cables are also thinner, lighter, and more flexible than traditional copper cables, making them easier to install and manage.
By supporting a maximum bandwidth of 48 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 240 Hz |
| HDMI Ethernet channel | Yes |
| Audio Return Channel (ARC) | Yes |
| Product colour | Black |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Fiber optic |
| HDMI version | 2.1 |
| Bandwidth | 48000 MB/s |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160, 2560 x 1440, 5120 x 2880, 1920 x 1200 (WUXGA), 7680 x 4320 |
| HDCP | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dynamic HDR |
| Cable jacket material | Polyvinyl chloride (PVC) |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Cable type | Round cable |
| HDMI cable type | High Speed HDMI cable with Ethernet |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Compliance certificates | REACH, RoHS, CE |
| Weight & dimensions | |
| Weight | 500 g |
| Package weight | 3 kg |
| Package width | 230 mm |
| Package depth | 210 mm |
| Package height | 65 mm |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Packaging data | |
| Package weight | 3 kg |
| Package width | 230 mm |
| Package depth | 210 mm |
| Package height | 65 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Country of origin | China |
| Compliance certificates | REACH, RoHS, CE |
| Other features | |
| Country of origin | China |
| Width | 49 mm |
| Height | 15000 mm |
| Depth | 19 mm |
| Logistics data | |
| Country of origin | China |
| Master (outer) case gross weight | 5 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 245 mm |
| Master (outer) case height | 385 mm |
| Harmonized System (HS) code | 8544421000 |
