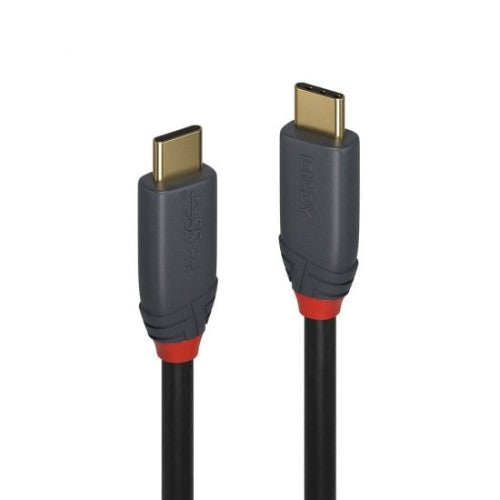

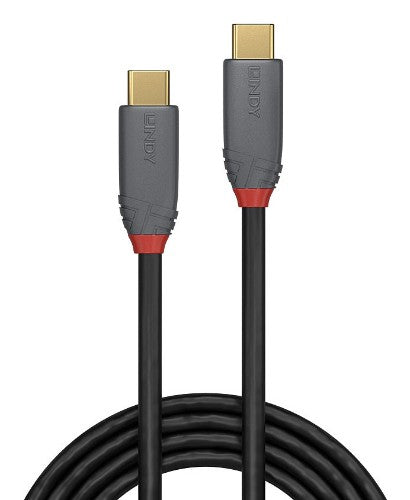

1m USB 3.2 Type C to C Cable, 20Gbps, 100W PD, Anthra Line
£14.51
Key Features
- Delivers up to 100W of power via USB Power Delivery (20V 5A) to rapidly charge laptops, tablets, and mobile phones, keeping devices powered throughout demanding workdays.
- Supports video at up to 4K 60Hz via DisplayPort Alternate Mode, enabling high-resolution video output for today ́s laptops, workstations, and AV systems.
- Featuring triple-shielded cable and gold-plated connectors for superior performance, signal integrity, and durability in mission-critical environments.
Description
1m USB 3.2 USB-C to C Cable 20Gbps 4K60 100W PD Anthra Line
From the Lines cable connectivity concept developed by Lindy Anthra Line USB 3.1 Type C to C 5A cables are the professional choice for high performance connections in commercial AV and IT installations.
USB Type C features a new reversible connector so no matter which orientation the cable is inserted a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.1 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
The SuperSpeed+ protocol is supported with up to 10Gbps bandwidth for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.
Anthra Line USB 3.1 Type C to C 5A cables are available in lengths from 0.5m 1m and 1.5m
• Professional choice USB 3.1 Type C to C 5A cable for commercial and high performance AV and IT installations
• Supports SuperSpeed+ data transfer speeds up to 10Gbps
• Robust PVC housing 24K gold plated connectors and contacts
• Triple shielded cable corrosion resistant tinned copper conductors
• SuperSpeed+ USB 3.1 10Gbps; 10 year warranty
| Features | |
|---|---|
| Length | 1.0m |
| USB3 C Male-Male | Yes |
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable colour | Black |
| AWG wire size | 24/30/32 |
| USB version | USB 3.2 Gen 2x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 1 m |
| Connector contacts plating | Gold |
| Maximum data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Certification | REACH, UL |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector shield material | Copper |
| Nominal attenuation | 0.5Mhz-15Ghz < 40dB |
| Maximum data transfer rate | 20 Gbit/s |
| Cable diameter | 4.8 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Cable length | 1 m |
| Width | 12.7 mm |
| Depth | 30.8 mm |
| Package width | 144 mm |
| Package depth | 133 mm |
| Package height | 10 mm |
| Package type | Polybag |
| Packaging data | |
| Package width | 144 mm |
| Package depth | 133 mm |
| Package height | 10 mm |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 2x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Gold |
| Connector(s) | USB 3.2 C Male to C Male |
| Data transmission | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Cable colour | Black |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | REACH, RoHS, UL |
| Housing material | Polyvinyl chloride (PVC) |
| Replacement item number | 41901 |
| Certificates | |
| Certification | REACH, UL |
| Compliance certificates | REACH, RoHS, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Width | 12.7 mm |
| Depth | 30.8 mm |
| Connector(s) | USB 3.2 C Male to C Male |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Compliance certificates | REACH, RoHS, UL |
| Logistics data | |
| Products per master (outer) case | 70 pc(s) |
| Harmonized System (HS) code | 84733080 |
