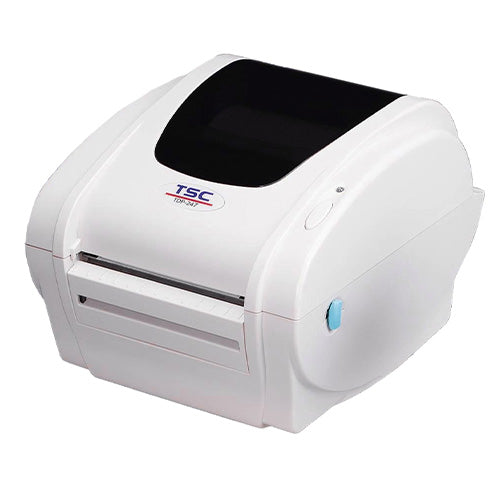

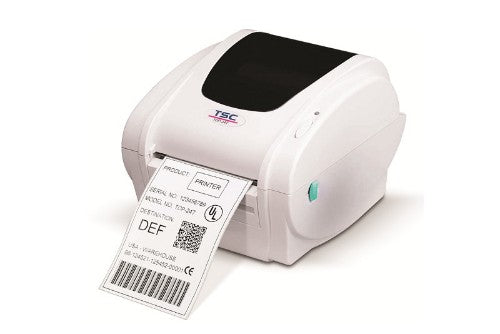

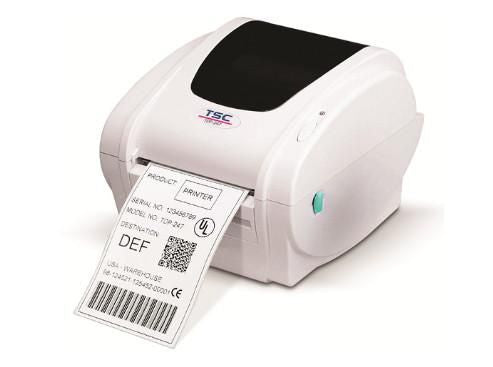

TSC TDP-247, TSPL-EZ, USB, RS232, LPT
£333.06
Key Features
- High quality double-walled clamshell design
- 203 dpi and 300 dpi resolution models
- Up to 177.8 mm (7") per second print speed

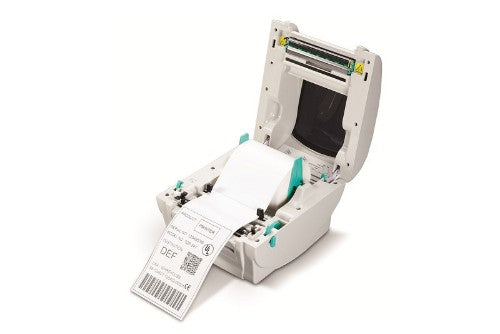

- Easy media loading
- Label capacity up to 214 mm (8.4") OD
- SD Flash memory expansion up to 4 GB
- Head open sensor
- USB 2.0, parallel and serial connectivity standard
- Optional internal Ethernet interface, cutter, standalone keyboard and peel-and-present assembly
- ENERGY STAR® qualified
- Cerner certified
Description
Specifications
| Print quality | |
|---|---|
| Vertical printing | Yes |
| Maximum resolution | 203 x 300 DPI |
| Maximum printing width | 10.8 cm |
| Maximum print height | 2.29 m |
| Printing | |
| Rotated printing | Yes |
| Colour | No |
| Vertical printing | Yes |
| Print speed | 178 mm/sec |
| Maximum resolution | 203 x 300 DPI |
| Maximum printing width | 10.8 cm |
| Maximum print height | 2.29 m |
| Print technology | Direct thermal |
| Design | |
| LED indicators | Yes |
| Housing material | Plastic |
| Display | No |
| Product colour | Beige |
| Control type | Buttons |
| Built-in display | No |
| Certification | FCC Class B, CE Class B, C-Class B, UL, cUL, TÜV/Safety, CCC, RoHS, WEEE |
| Display | |
| Display | No |
| Memory | |
| Internal memory | 8 MB |
| Flash memory | 4 MB |
| Paper handling | |
| Supported paper width | 20 - 112 mm |
| Media thickness | 0.06 - 0.19 mm |
| Maximum roll diameter | 12.7 cm |
| Maximum media length | 2.29 m |
| Maximum label length | 10 m |
| Core diameter | 7.62 cm |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Connectivity technology | Wired |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataMatrix, Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, PLESSEY, POSTNET, QR Code, UPC-A, UPC-E |
| Number of fonts | 8 |
| Internal memory | 8 MB |
| Flash memory | 4 MB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in processor | Yes |
| Certification | FCC Class B, CE Class B, C-Class B, UL, cUL, TÜV/Safety, CCC, RoHS, WEEE |
| Page description languages | TSPL-EZ |
| Power | |
| Input current | 2.5 A |
| AC adapter output voltage | 24 V |
| AC adapter output current | 3.75 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source type | DC |
| Technical details | |
| Product colour | Beige |
| Built-in barcodes | 1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataMatrix, Interleaved 2/5, MSI, MaxiCode, MicroPDF417, PDF417, PLESSEY, POSTNET, QR Code, UPC-A, UPC-E |
| Number of fonts | 8 |
| Maximum label length | 10 m |
| LED indicators | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | China Compulsory Certification (CCC), Federal Communications Commission (FCC), RoHS, TÜV mark, UL, WEEE, cUL |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC Class B, CE Class B, C-Class B, UL, cUL, TÜV/Safety, CCC, RoHS, WEEE |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 240 mm |
| Height | 164 mm |
| Weight | 1.9 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB |
| Other features | |
| LED indicators | Yes |
