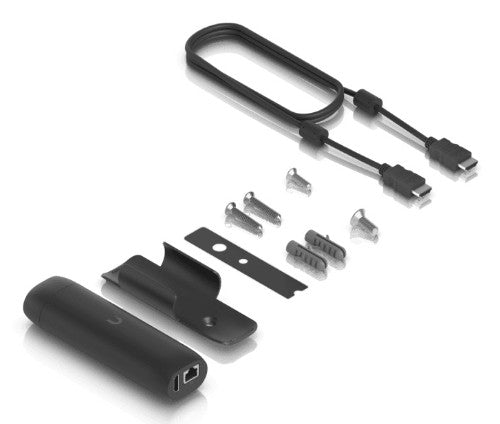

Protect Viewport, GbE RJ45, PoE, Polycarbonate, black
£189.13
Description
Easy-to-use hub for viewing Protect camera feeds on an HDMI display.Specifications
| Performance | |
|---|---|
| Maximum frame rate | 30 fps |
| Electrostatic Discharge (ESD) protection (contact) | 4 kV |
| Electrostatic Discharge (ESD) protection (air) | 8 kV |
| Features | |
| Product colour | Black |
| Housing material | Polycarbonate (PC) |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 9.5 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 52 mm |
| Depth | 37 mm |
| Height | 157 mm |
| Weight | 230 g |
| Packaging content | |
| Cables included | HDMI |
| Technical details | |
| Compliance certificates | National Defense Authorization Act (NDAA), CE, Federal Communications Commission (FCC), Industry Canada (IC) |
