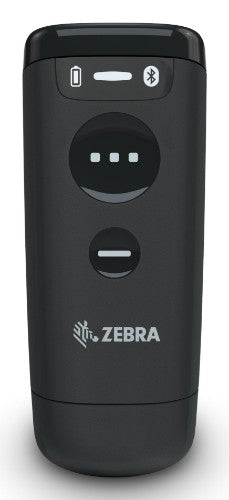

CS6080 Cordless, Bluetooth 5.0, LED, 1D/2D, 1280 x 960, Companion Scanner, Inductive, Area Imager, Standard Range, Midnight Black, Vibration Motor, 745 mAh, 2.3 x 4.6 cm x 10.9 cm, 83 g, Qi Pad Charger, USB-C Qi Pad Cable
£324.69
Key Features
- Scan Type: 2D, 1D
- Image Sensor: 1280x960 pixels
- Scan Range: Standard Range
- Corded/Cordless: Corded, Cordless
- Battery Capacity: 18 hours (745 mAh)
Description

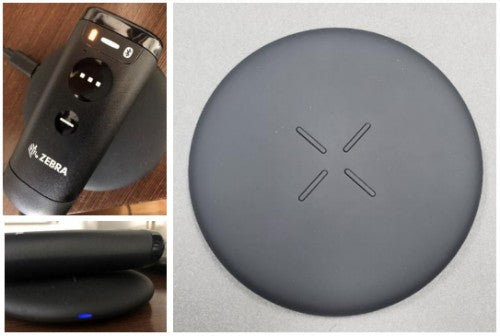

The ultra-versatile CS60 Companion scanner adapts to any workflow. As a cordless scanner, it is small enough to tuck in a pocket and offers the latest mobile technology including contactless charging. As a corded scanner, it provides compact scanning for the checkout counter, self-service kiosk and more.Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1 |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Yaw reading angle | -60 - 60° |
| Tilt reading angle | 0 - 360° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | -60 - 60° |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Horizontal field of view | 45° |
| Vertical field of view | 34° |
| Ports & interfaces | |
| Wireless range | 100 m |
| Connectivity technology | Wireless |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Standard interfaces | Bluetooth |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Buzzer | Yes |
| Ambient lighting | Yes |
| Vibration function | Yes |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Power | |
| Power source type | Battery |
| Battery life | 18 h |
| Charging time | 3 h |
| Number of reads per charge | 13000 |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 745 mAh |
| Weight & dimensions | |
| Width | 18 mm |
| Depth | 43 mm |
| Height | 9 mm |
| Weight | 83 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Buzzer | Yes |
| Warranty period | 3 year(s) |
| Compliance certificates | Mfi, REACH, RoHS, Trade Agreements Act (TAA) |
| Packaging data | |
| Charging base | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Drop resistance | 1.8 m |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Packaging content | |
| Charging base | Yes |
