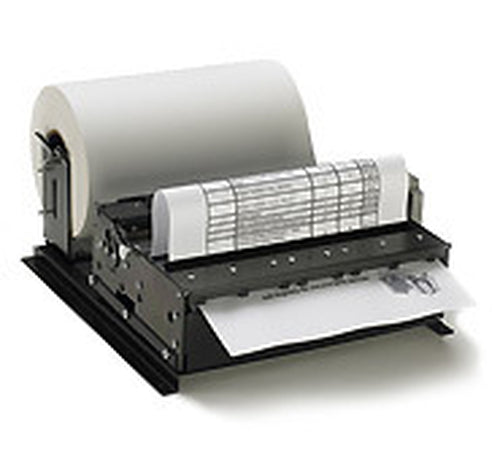

TTP 8200 STD, 8d/mm, 210mm, Cutter & Presenter
£23.06
Description
The TTP 8200 series kiosk printers offer 203-dpi resolution for full-format A4 or letter-size printouts of forms, bank statements, maps, or Web pages. The fast, compact, and low-maintenance design makes these printers ideal for unattended environments. The pull detector and jam-preventing loop presenter provide trouble free operation. The retract function keeps sensitive documents from being left behind outside the kiosk – and it saves media. If a printout is not taken from the printer, the output will be retracted and the remaining information can be deleted from the print queue, eliminating unwanted print jobs. The TTP 8200 is available in three configurations for flexible kiosk integration: standard, compact, and vertical, each equipped with standard USB and parallel interfaces. For additional configuration flexibility, the media can be mounted either behind or below the printer.Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Printing | |
| Colour | No |
| Print speed | 100 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Print technology | Direct thermal |
| Paper handling | |
| Supported paper width (imperial) | 8.5" |
| Supported paper width | 216 mm |
| Media thickness (imperial) | 0.002 - 0.004" |
| Media thickness | 0.054 - 0.1 mm |
| Maximum roll diameter | 25 cm |
| Core diameter | 2.54 cm |
| Ports & interfaces | |
| USB 1.1 ports quantity | 1 |
| Parallel ports quantity | 1 |
| Connectivity technology | Wired |
| Performance | |
| Built-in barcodes | Code 39 |
| Certification | -UL, -cUL, -CE. |
| Design | |
| Certification | -UL, -cUL, -CE. |
| Weight & dimensions | |
| Dimensions (WxDxH) | 286 x 171 x 78 mm |
| Weight | 4.8 kg |
| Power | |
| Power requirements | 24 VDC |
| AC adapter output current | 6 A |
| Technical details | |
| Built-in barcodes | Code 39 |
| Certificates | |
| Certification | -UL, -cUL, -CE. |
| Operational conditions | |
| Storage temperature (T-T) | 4 - 140 °F |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 50 °C |
| Operating relative humidity (H-H) | 35 - 75% |
| Other features | |
| Dimensions (WxDxH) | 286 x 171 x 78 mm |
